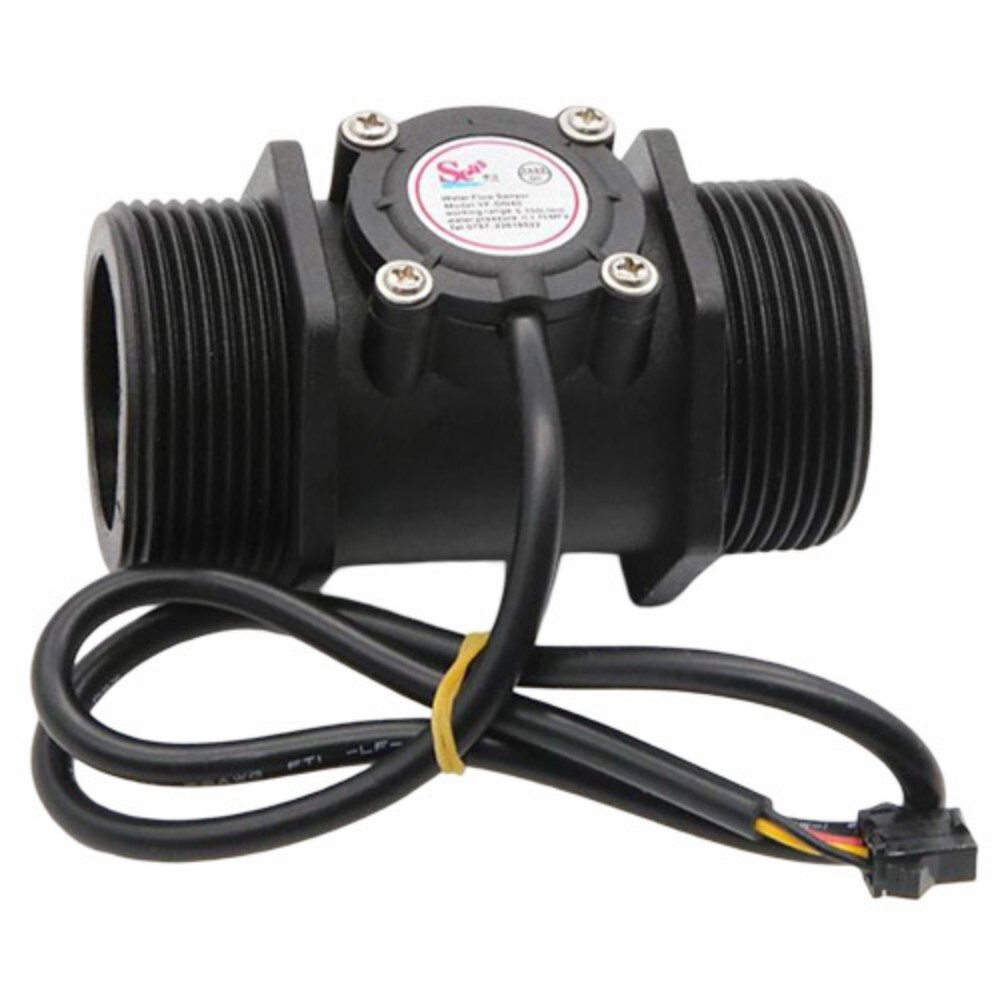

Hall Sensor

• Accuracy
• 5%

• Application
• Water Flow Measurement for Pipelines (DN25/DN40/DN50)

• Cable Length
• ~30cm

• Features
• High Durability, Corrosion Resistant, Stable Output

• Function
• Detects and Measures Water Flow Rate

• IP Rating
• IP65

• Input
• Water Flow

• Interface
• 3-pin (VCC, GND, Signal)

• Material
• High-quality Brass and Plastic

• Measurement Range
• DN25: 2-30 L/min; DN40: 10-60 L/min; DN50: 15-100 L/min

• Mounting Type
• Inline Pipe Mount

• Operating Temperature
• -20C to +80C

• Output
• Pulse Signal

• Power Consumption
• 15mA

• Product Type
• Water Flow Hall Sensor

• Resolution
• 1 L/min

• Response Time
• 0.5s

• Sensitivity
• DN25: 4.8 pulses/L; DN40: 7.5 pulses/L; DN50: 5.5 pulses/L

• Sensor Type
• Hall Effect

• Signal Type
• Digital

• Usage
• Industrial and Commercial Water Flow Monitoring

• Voltage
• DC 5-24V

• Weight
• DN25: ~115g; DN40: ~220g; DN50: ~320g

• Wireless
• No

• Accuracy
• 10%

• Application
• Water Dispensing Systems, RO Plants, Water Purifiers, Industrial Automation

• Cable Length
• Approx. 45 cm

• Features
• Corrosion-resistant, Compact Design, Quick Response

• Function
• Detects and measures water flow

• IP Rating
• IP65

• Input
• Water Flow

• Interface
• 3-pin Output

• Material
• Engineering Plastic, Brass

• Measurement Range
• 1-30 L/min

• Mounting Type
• Inline

• Operating Temperature
• -20C to 85C

• Output
• Pulse signal

• Power Consumption
• 15 mA

• Product Type
• Hall Sensor For Water Flow Meter

• Resolution
• 1 L/min

• Response Time
• 0.2 s

• Sensitivity
• High

• Sensor Type
• Hall Effect Sensor

• Signal Type
• Other, Digital Pulse

• Usage
• Water flow measurement

• Voltage
• DC 5-18V

• Weight
• About 50 g

• Wireless
• No

• Accuracy
• 2%

• Application
• Automotive, industrial equipment, robotics

• Cable Length
• 150mm

• Features
• Non-contact operation, high reliability, compact design

• Function
• Detects magnetic field presence and strength

• IP Rating
• IP65

• Input
• DC Voltage

• Interface
• 3-Pin

• Material
• Plastic and Metal

• Measurement Range
• Up to 100mT

• Mounting Type
• PCB mount

• Operating Temperature
• -40C to +125C

• Output
• Digital

• Power Consumption
• Low

• Product Type
• Hall Sensor

• Resolution
• High

• Response Time
• <5 s

• Sensitivity
• 50 mV/mT

• Sensor Type
• Magnetic Field Sensor

• Signal Type
• Other, Digital pulse

• Usage
• Position and speed sensing

• Voltage
• 5V DC

• Weight
• Approx. 10g

• Wireless
• No
