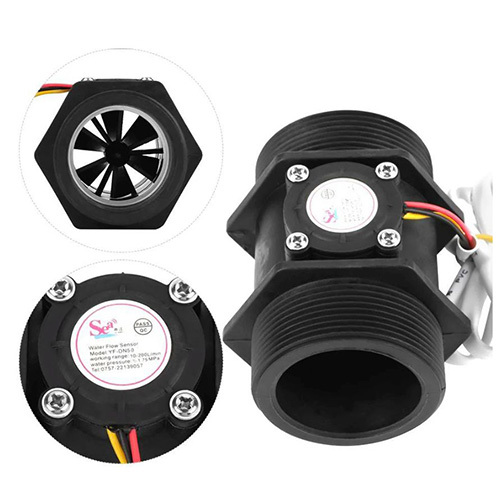

DN25-DN40 And DN50 Water Flow Hall Sensors

Send Inquiry

Request To Call Back

DN25-DN40 And DN50 Water Flow Hall Sensors

Name: DN25-DN40 And DN50 Water Flow Hall Sensors
Brand: AARIKA ENTERPRISES
Price: 1299 INR
Availability: InStock

Price 1200.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Pieces

DN25-DN40 And DN50 Water Flow Hall Sensors Specification

Features
High Durability, Corrosion Resistant, Stable Output

Signal Type
Digital

Power Consumption
15mA Volt-Ampere (VA)

Cable Length
~30cm Foot (ft)

Mounting Type
Inline Pipe Mount

Sensitivity
DN25: 4.8 pulses/L; DN40: 7.5 pulses/L; DN50: 5.5 pulses/L

Wireless
No

Sensor Type
Hall Effect

Operating Temperature
-20C to +80C Kelvin (K)

Measurement Range
DN25: 2-30 L/min; DN40: 10-60 L/min; DN50: 15-100 L/min

IP Rating
IP65

Interface
3-pin (VCC, GND, Signal)

Response Time
0.5s Hours

Application
Water Flow Measurement for Pipelines (DN25/DN40/DN50)

Product Type
Water Flow Hall Sensor

Material
High-quality Brass and Plastic

Input
Water Flow

Output
Pulse Signal

Function
Detects and Measures Water Flow Rate

Usage
Industrial and Commercial Water Flow Monitoring

Accuracy
5% %

Resolution
1 L/min

Voltage
DC 5-24V Volt (v)

Weight
DN25: ~115g; DN40: ~220g; DN50: ~320g Ounce (oz)

Warranty
6 months

Thread Type
BSP (British Standard Pipe)

Connector Type
Molex Compatible

Installation Position
Horizontal/Vertical

Recommended Filtration
0.3mm Particle Size

Minimum Working Pressure
0.02 MPa

Maximum Working Pressure
1.75 MPa

Applicable Media
Clear Water, Non-corrosive Liquids

Life Expectancy
Over 100,000 cycles

Storage Temperature
-25C to +85C

Contact Material
Nickel-Plated Brass

DN25-DN40 And DN50 Water Flow Hall Sensors Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About DN25-DN40 And DN50 Water Flow Hall Sensors

Experience a splendiferous blend of durability and precision with DN25-DN40 and DN50 Water Flow Hall Sensors, masterfully crafted for dominant performance in industrial and commercial applications. Utilise this sensational offer at a special rate to personalise your water flow measurement needs. Featuring a high-grade nickel-plated brass construction, these sensors withstand up to 1.75 MPa pressure and deliver stable, digital pulse outputs. Designed for clear water and non-corrosive liquids, they ensure over 100,000 cycles of reliable operation with minimal power consumption. Detect, measure, and monitor water flow with exceptional accuracy-even in diverse pipeline settings.

Versatile Usage for Every Flow Monitoring Requirement

Our DN25-DN40 and DN50 Water Flow Hall Sensors are ideal for industrial and commercial usage types, enabling the precise detection, measurement, and monitoring of water flow throughout pipelines. The sensors are designed to operate flawlessly with clear water or non-corrosive liquids. Their utility is maximised in water flow measurement systems and flow control applications, whether for large manufacturing plants or commercial utility management. Install these inline for dominant, reliable performance in both horizontal and vertical pipe configurations.

Efficient Delivery and Flexible Export Options

We offer these splendiferous sensors at a special sale price for bulk and customised orders. Delivery is swift via your chosen FOB port in India, ensuring that worldwide clients receive their products efficiently. Take advantage of our sample policy to utilise this offer for your specific requirements, and experience the convenience of timely shipments. Our main export markets cover Asia, the Middle East, and Africa, providing global access to this sensational, robust water flow measuring solution.

FAQ's of DN25-DN40 And DN50 Water Flow Hall Sensors:

Q: How do DN25-DN40 and DN50 Water Flow Hall Sensors function in measuring water flow?

A: These sensors use a Hall effect mechanism to generate digital pulse signals that correspond to the water flow rate in a pipeline. The output can be monitored or recorded for precise water flow management.

Q: What are the primary usage types for these water flow sensors?

A: They are primarily used for industrial and commercial water flow monitoring in pipelines handling clear water or non-corrosive liquids, ensuring reliable detection and measurement.

Q: When should the sensors be installed for optimal performance?

A: Install the sensors horizontally or vertically, inline with the pipeline, and ensure a filtration of 0.3mm particle size for optimal accuracy and longer lifespan.

Q: Where can these sensors be effectively deployed?

A: They can be utilised in any application that requires dominant water flow measurement-such as manufacturing plants, commercial buildings, or utility supply management-within the recommended specifications.
